Cartridge Valves

Description

Size PDF

Standard Cartridge Valves, High Flow, Active, and Servocartridge Valves for specialized and higher performance fluid power systems.

Sizes 16 to 100 are per DIN standard 24342
Valves Overview

Standard Cartridge

Valves

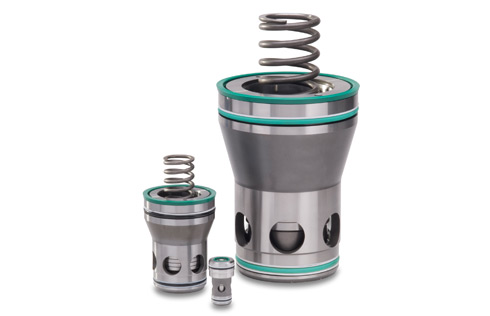

Cartridge Valves, also known as slip-In logic elements, are used for directional, pressure, check, and flow control. Cartridge Valves mounted in a manifold block provide a compact, integrated circuit for simplified machine design and reduced system costs. The cartridge is designed to fit into a cavity defined by DIN 24342 and is held in place by a cover. Sizes 16 to 100 are per DIN standard 24342

Standard Valves

High Flow Cartridge

Valves

High Flow Cartridge Valves have 40% to 50% more flow with the same size of the DIN 24342 cartridge, relative to standard cartridge valve. In many applications, the cartridge can be reduced one size yet it is fully interchangeable with DIN 24342 cavity so no manifold redesign required. Sizes 16 to 100 are per DIN standard 24342

High Flow Valves

Active Cartridge

Valves

Active Cartridge Valves contain an additional control area that provides more robust control of switching pressure for high-speed machines where low system pressure can delay closing times. These valves can offer improvements in closing and opening times, and closing under load and can be used in place of hydraulically or solenoid pilot operated check or direction control. click on pdf for sizes

Active Valves

Cartridge Covers Cartridge Covers are used in conjunction with cartridge valves to create a complete assembly. This combination offers different options to the designer to create flow, check, pressure, and directional control functions. Moog offers a variety of cover designs that offer combination functions such as check valves and shuttle valves. NG 16 - NG 100

Cartridge Covers

Cartridge, 2-2 Way

Description

Size Max Flow (l/min) Max Pressure
(kg/cm2)
PDF

VB

Bypass, Slip-In Cartridge, normally open/closed, solenoid/proportional pilot operated for mineral oil or water 25 - 150 20,000 1200


VC
Check Valve, Slip-In Cartridge, for mineral oil or water 25 - 150 20,000 1200


Pressure Controls

Description

Size Max Flow (l/min) Max Pressure
(kg/cm2)
PDF

VR

Slip-in cartridge, direct operated relief for mineral oil 25 - 63 1,300 1200


WNC

High pressure relief valves 1/16" - 5/16 "  Not Rated  4135

Slip-In Valves

Description

Size Max Flow (l/min) Max Pressure
(kg/cm2)
PDF
Slip-In cartridge valves 26 - 100 8,200 350

Screw-In Valves

Description

Size Max Flow (l/min) Max Pressure
(kg/cm2)
PDF
Screw-In cartridge valves, in-line mounting, or integrated manifolds 600 - 2000 1,136 350
